Luxman PD-151

Luxman PD-151

4,890.00

Catégorie :

Spécifications techniques (en anglais)

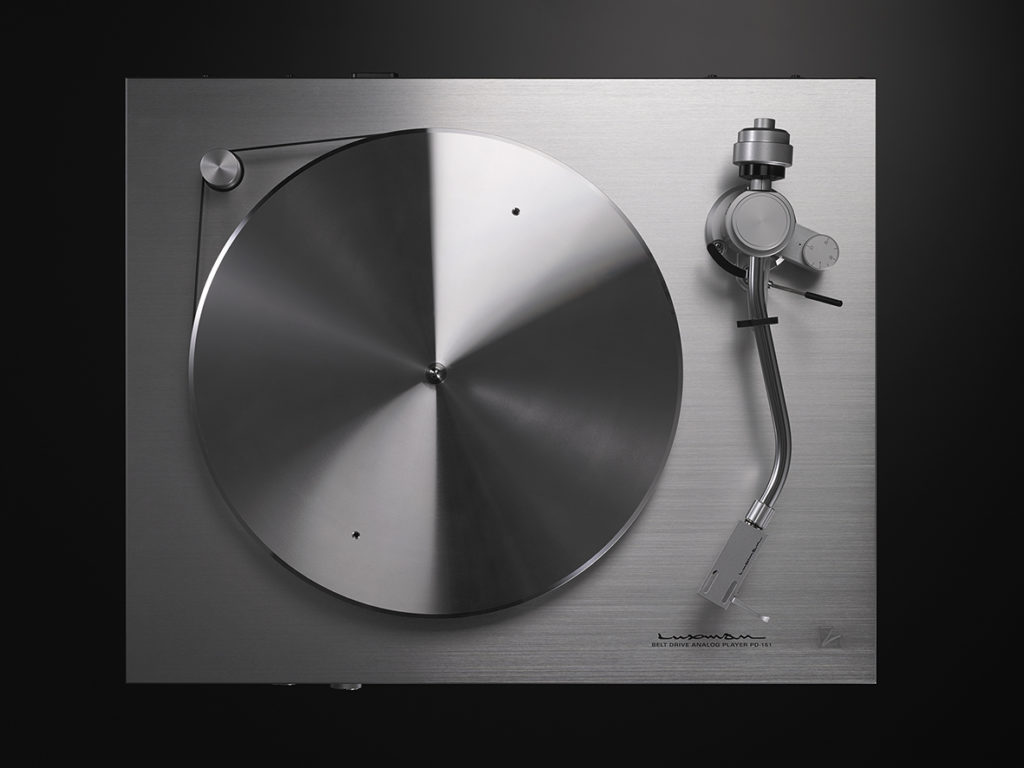

Phono motor section
Drive system Belt drive system

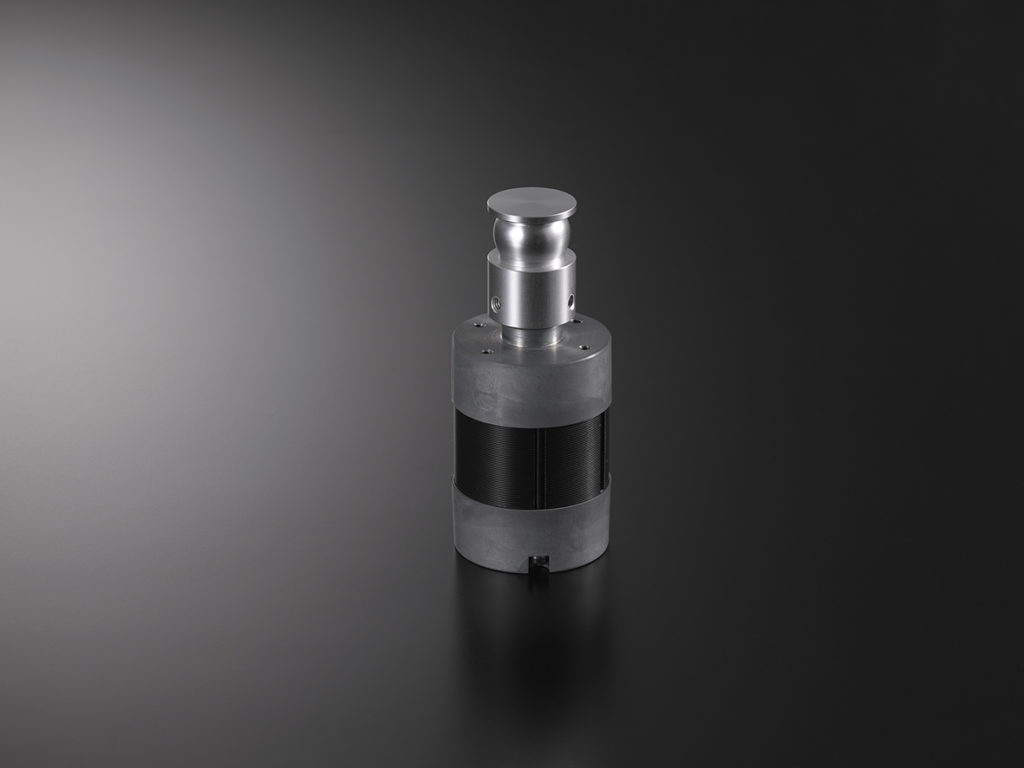

Motor Brushless DC motor with PID control
Platter 30cm machined alminum plate
Revolution 33 1/3rpm, 45rpm, 78rpm(3 speeds selectable)
Revolution adjustment range ±6%(each rotation speed adjustable independently)
Wow and flutter 0.04% or less(W.R.M.S.)
Weight(Platter) 4.0kg

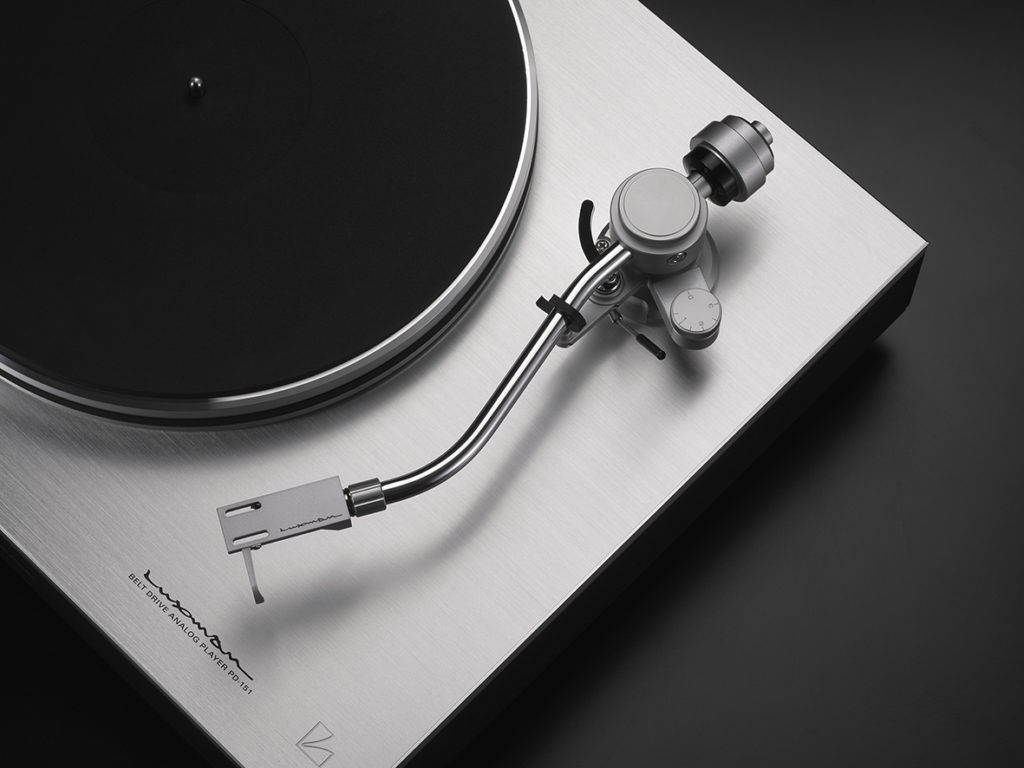

Tone arm section * Cartridge is not included
Type Static balanced, S shaped, universal type
Bearing Single point cross suspension
Effective length 229mm
Overhang 15mm
Tracking error angle +1.9° to -1.1°
Applicable cartridge weight 4 to 12g (including headshell 17 to 25g)
Adjustable height range 38 to 60mm
Anti-skating 0 to 3g
Power source and others * Dust cover is not included
Power source 230V~ 50Hz
Power consumption 6W
Dimensions 465 (W) × 133(up to top face of platter)(H)×
393(D) mm
Net weight 15.7kg (main unit)
Accessories Platter, Headshell, Rubber mat
Rubber belt,Platter mount handle (2pieces)
EP adaptor, Counterweight
Arm adjustment hex wrench set (3types)
Flathead screwdriver for rotation speed adjustment
phono cable (DIN→RCA : already installed on the unit), Power cable
