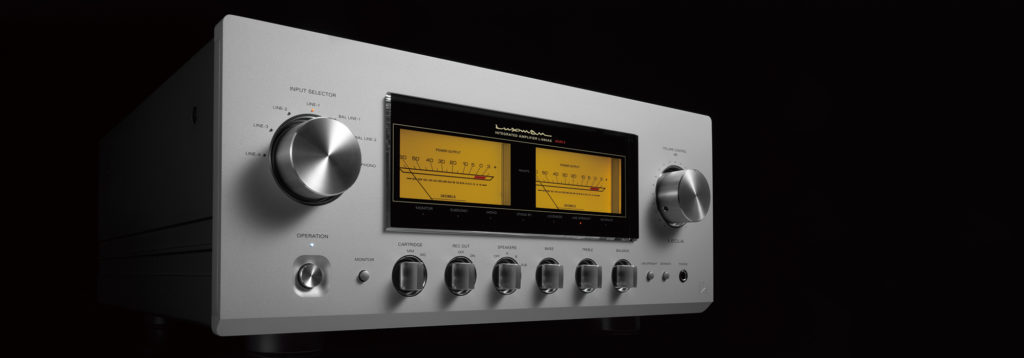

Intégré Luxman L-590AXII

8,490.00€

Spécifications techniques (en anglais) :

Rated output	30W + 30W (8Ω), 60W + 60W (4Ω)
Input sensitivity/input impedance	PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN-IN: 550mV/47kΩ
Output voltage	RECOUT: 180mV, PRE OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (+0, ±3.0dB)
Total harmonic distortion	0.005% or less (8Ω, 1kHz) 0.02% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A)	PHONO (MM): 91dB or more,PHONO (MC): 75dB or more LINE: 107dB or more
Volume adjustment	New LECUA1000
Amplification circuit	ODNF 4.0

Output configuration	Bipolar 3-parallel push-pull
Damping factor	320
Max. amount of tone control	BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz
Power supply	230V~(50Hz) / 115V~(60Hz)
Power consumption	330W 260W (under no signal), 0.5W (at standby)
External dimensions	440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth
Net weight	28.4kg (main unit)
Accessories	Remote controller (RA-17A) Power cable
Speaker terminal Supported Y-lug terminal dimension	Width of part a: 16mm or less Width of part b: 7mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.
